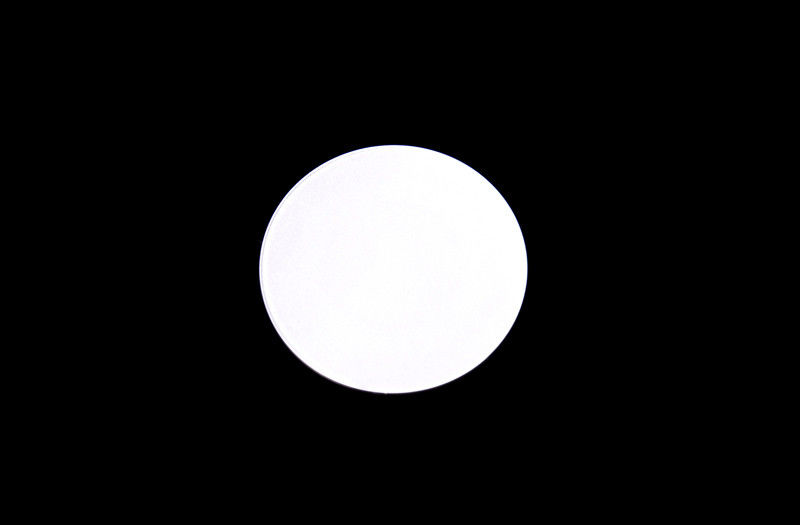

Sapphire Wafer made from corundum providing excellent durability clarity and thermal management for cutting edge technology
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | CQT |
| Certificering: | ISO:9001 |
| Modelnummer: | Saffier (Al2O3) |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 10 stuks |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Cassette, Kruik, Filmpakket |
| Levertijd: | 1-4 weken |
| Betalingscondities: | T/T |
| Levering vermogen: | 10000 stuks/maand |
|
Gedetailleerde informatie |
|||
| Materiaal: | Safir (Al2O3) kristal | Type: | Enig Kristal |
|---|---|---|---|
| Kleur: | Transparant wit, | Diameter: | Twee, drie, vier, zes. |
| Smeltpunt: | 2040 graden van C | De Modulus van jongelui (e): | 335 GPa |
| Scheerbeurtmodulus (G): | 148.1 GPa | Industrie: | Geleid, optisch Glas, eli-klaar Wafeltje |
| Markeren: | Sapphire wafer for thermal management,Corundum wafer with high durability,Piezoelectric wafer for cutting-edge technology |
||
Productomschrijving
Sapphire Wafer made from corundum providing excellent durability clarity and thermal management for cutting edge technology
Elevate your semiconductor, optoelectronic, or photonics projects with our ultra-high-quality sapphire wafers, engineered for excellence. Crafted from single-crystal sapphire (α-Al₂O₃), our wafers offer unmatched thermal stability, chemical inertness, and optical transparency, making them ideal for demanding applications in LEDs, RFICs, laser diodes, and MEMS devices.
With diameters ranging from 2" to 8" and thicknesses tailored to your specifications, our sapphire wafers deliver exceptional surface flatness (<0.1μm) and minimal defects, ensuring optimal yield and device reliability. Whether you require C-plane, R-plane, or M-plane orientations, we provide customizable solutions to meet your exact needs.
Our state-of-the-art manufacturing process guarantees consistent quality, while competitive pricing and short lead times accelerate your time-to-market. Trusted by industry leaders worldwide, our sapphire wafers are the cornerstone of innovation in high-tech industries.
Choose excellence—choose our sapphire wafers for your next breakthrough. Contact us today to request a quote or discuss your custom requirements. Let’s power the future, together.
OPTICAL PROPERTIES
|
Transmission |
0.17 to 5.5 um |
|
Refractive Index |
1.75449 (o) 1.74663 (e) at 1.06 um |
|
Reflection Loss |
at 1.06 microns (2 surfaces) for o-ray - 11.7%; for e-ray - 14.2% |
|
Absorption Index |
0.3 x 10-3 cm-1 at 2.4 um |
|
dN/dT |
13.7 x 10-6 at 5.4 um |
|
dn/dm = 0 |
1.5 um |
|
Orientation |
R-plane, C-plane, A-plane, M-plane or a specified orientation |
|
Orientation Tolerance |
± 0.3° |
|
Diameter |
2 inches, 3 inches, 4 inches, 6 inches, 8 inches or others |
|
Diameter Tolerance |
0.1mm for 2 inches, 0.2mm for 3 inches, 0.3mm for 4 inches, 0.5mm for 6 inches |
|
Thickness |
0.25mm, 0.33mm, 0.43mm, 0.65mm, 1mm or others; |
|
Thickness Tolerance |
25μm |
|
Primary Flat Length |
16.0±1.0mm for 2 inches, 22.0±1.0mm for 3 inches, 30.0±1.5mm for 4 inches, 47.5/50.0±2.0mm for 6 inches |
|
Primary Flat Orientation |
A-plane (1 1-2 0 ) ± 0.2°; C-plane (0 0-0 1 ) ± 0.2°, Projected C-Axis 45 +/- 2° |
|
TTV |
≤10µm for 2 inches, ≤15µm for 3 inches, ≤20µm for 4 inches, ≤25µm for 6 inches |
|
BOW |
≤10µm for 2 inches, ≤15µm for 3 inches, ≤20µm for 4 inches, ≤25µm for 6 inches |
|
Front Surface |
Epi-Polished (Ra< 0.3nm for C-plane, 0.5nm for other orientations) |
|
Back Surface |
Fine ground (Ra=0.6μm~1.4μm) or Epi-polished |
|
Packaging |
Packaged in a class 100 clean room environment |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
